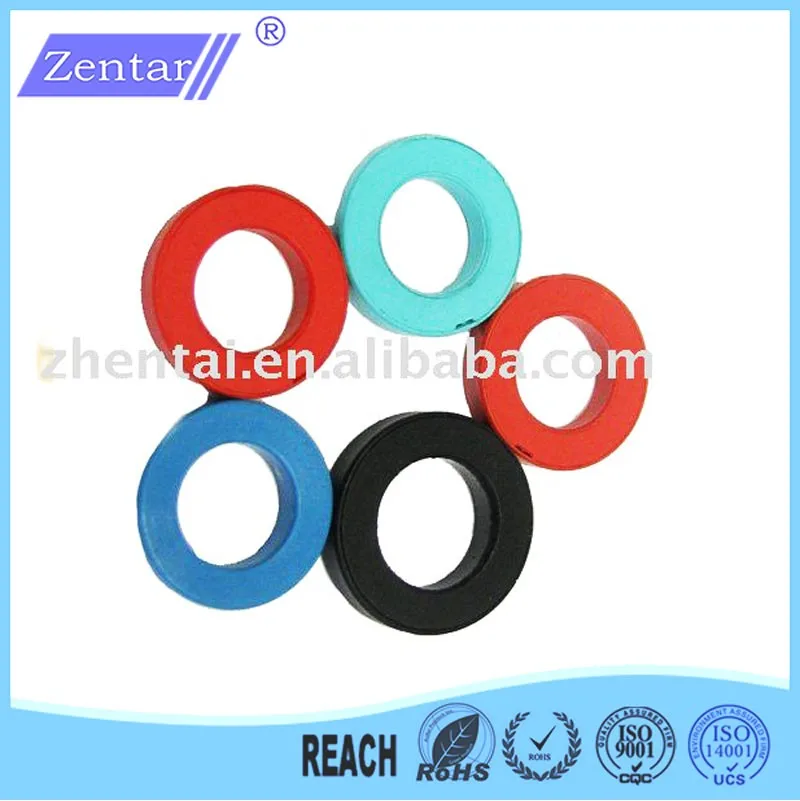

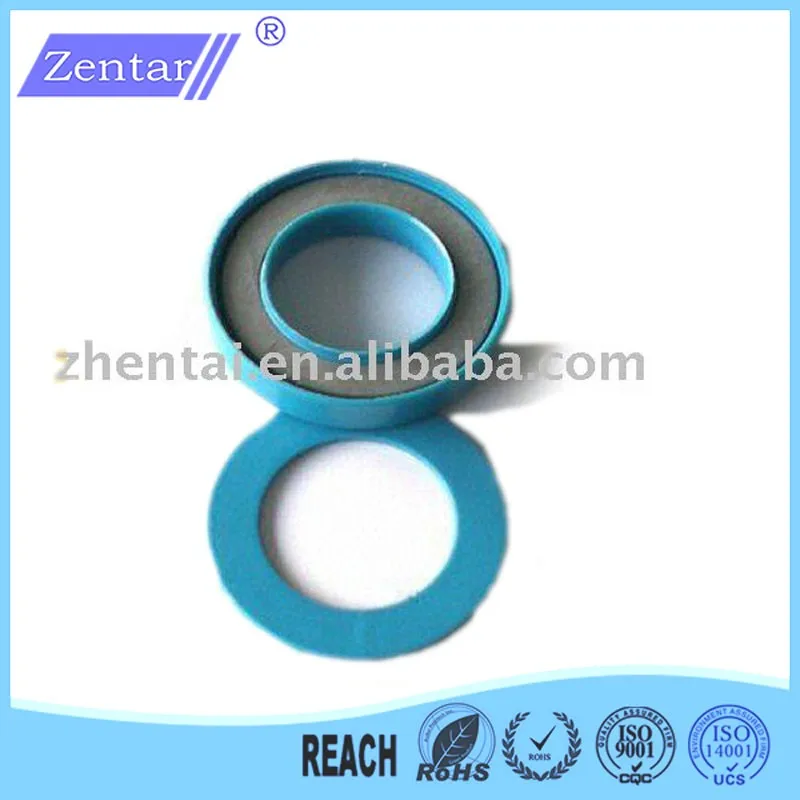

Blue permalloy ring magnetic core HP1201

FOB Reference Price:Get Latest Price
$0.10 - $2.00 / Pieces | 5000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Zentar
Model Number:
HP1201 blue
Type:
Soft
Composite:
AlNiCo Magnet
Shape:
Coil
Application:
Industrial Magnet, current transformer
Certificate:
ISO9001:2000
with magnetic pieces:
5 pieces
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Month
Packaging & Delivery

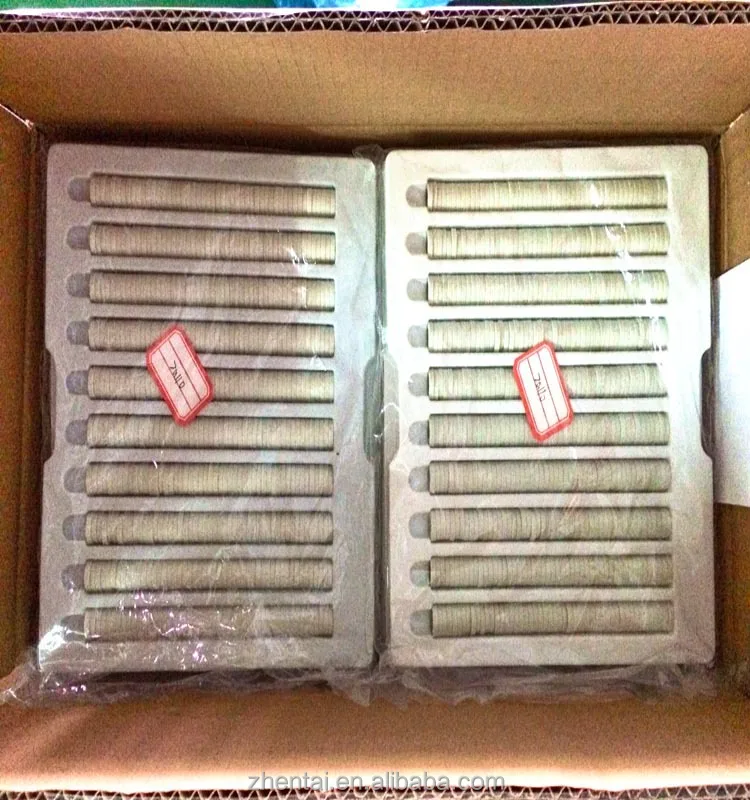

Packaging Details
Cartion
Port
Xiamen
Lead Time :
12-30 days

permalloy core :



The core with winding(800 turns 38AWG) could meet the below requirement .
Test condition Iin=5mA F=50Hz Rl=1KΩ
Variety Ratio of output  voltage≤15% at -35 or 80 to that at ambient temperatuer 25.
Over leakage charactersticsVariety ratio of Vo≤10%  before toafter magnetization
at DC 20AT   10mS (3 times).



Especially high initial permeability;
High saturation flux density;
Low iron losses;
Excellent temperature stability;
Perfect resistance to the heavy current shock.
